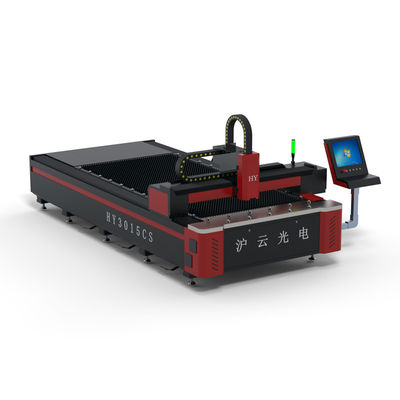

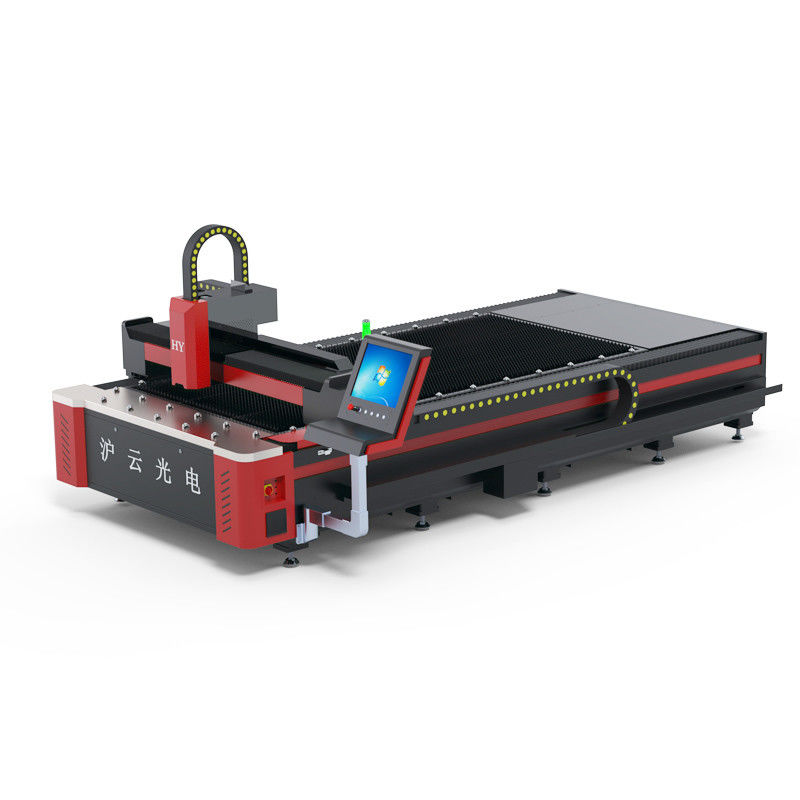

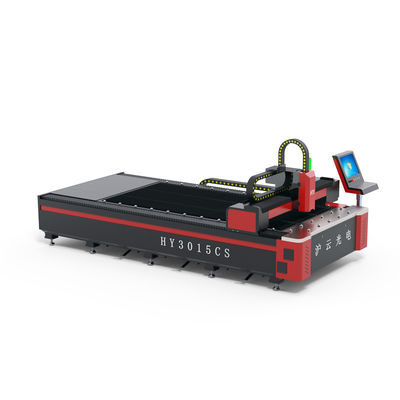

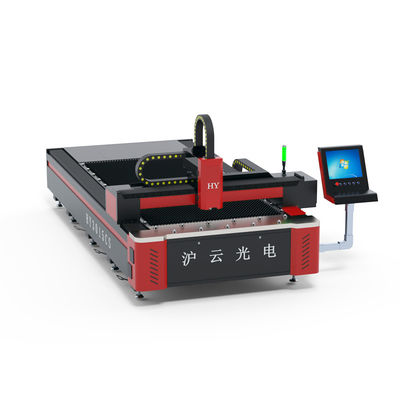

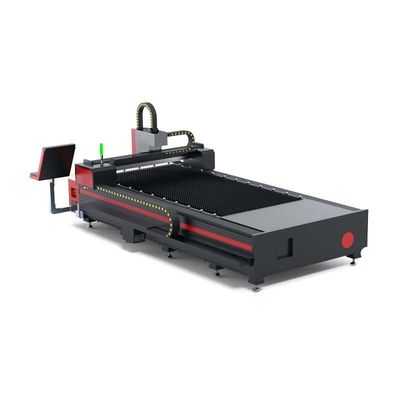

3000w 4000w Laser Cutting Machine for Stainless Steel Sheet using HIWIN Guiderail
Product Details:
| Place of Origin: | China |
| Brand Name: | Chylaser |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,500.00 - $24,000.00/sets |
| Packaging Details: | Standard Export Packing |
| Payment Terms: | T/T, L/C, Cash |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 3000*1500mm | Cutting Speed: | 1000-26000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 1-22mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CypCut | Laser Source Brand: | RAYCUS |
| Laser Head Brand: | Raytools | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 3800 KG | Key Selling Points: | Long Service Life |
| Optical Lens Brand: | Wavelength | Warranty: | 3 Years |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Construction Works , Energy & Mining, Advertising Company | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 3 Years |
| Core Components: | Laser | Mode Of Operation: | Continuous Wave |
| Configuration: | 3-axis | Products Handled: | Sheet Metal |
| Feature: | SERVO-MOTOR | After-sales Service Provided: | Video Technical Support |
| After Warranty Service: | Field Maintenance And Repair Service | Local Service Location: | Malaysia |
| Showroom Location: | Zhejiang | Marketing Type: | New Product 2021 |
| Port: | Lianyungang | ||
Product Description
Product Description
Main spare parts list:
1. Laser source - Raycus (MAX, JPT, IPG for option)
2. Laser cutting head - Raytools (Precitec & automatic focus for option)
3. Chiller - Hanli
4. Servo drive - LEAD-MOTION (Germany)
5. Reducer - NIDEC-SHIMPO (Japan)
6. Rack - LEAN (Germany)
7. Guide - HIWIN (Taiwan)
8. System - Cypcut
1. Laser source - Raycus (MAX, JPT, IPG for option)
2. Laser cutting head - Raytools (Precitec & automatic focus for option)
3. Chiller - Hanli
4. Servo drive - LEAD-MOTION (Germany)
5. Reducer - NIDEC-SHIMPO (Japan)
6. Rack - LEAN (Germany)
7. Guide - HIWIN (Taiwan)
8. System - Cypcut
Technical Parameters
Main components & parts | ||||||
ComponentsComponents | Specification | Quantity | ||||
#1 | Laser generator | 1000W/1500W/2000W/3000W | 1 pcs | |||
#2 | Laser cutting head | manual focusing | 1 pcs | |||
#3 | CNC system | special cutting system CYPCUT, height adjustment system ,Industrial Personal Computer (IPC) | 1 pcs | |||
#4 | Machine tool | machine tool body, beam, metal sheet, exchange platform | 1 pcs | |||
#5 | Transmission system | reducer & gear rack | 3 set | |||
guide rail | 4 set | |||||
#6 | Servo system | driver & motor | 4 set | |||
#7 | Lubrication device | electric lubricating pump | 1 pcs | |||
#8 | Gas circuit | proportional valve, solenoid valve, check valve | 1 pcs | |||
#9 | Electric circuit | contactor, circuit breaker, electric relay | 1 pcs | |||
Description
Product application
Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel Plate,
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper
Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis,
Metal Plate, Tubes and Pipes, all ok.
Application Industries:
HuYun CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED
Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &
Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts,
Nameplates, etc.
Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron, Galvanized Sheet, Aluminum Plate, Copper
Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver Plate, Titanium Plate, Metal Sheet, If you equipped with the rotary axis,
Metal Plate, Tubes and Pipes, all ok.
Application Industries:
HuYun CNC Fiber Laser Cutting Machines are widely used in manufacture Billboard, Signs, Advertising, Signage, Metal Letters, LED
Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks &
Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts,
Nameplates, etc.
Company Profile
About us
Zhejiang Huyun Optoelectronic Equipment Co., Ltd.founded in 2016, Chylaser has a total registered capital of 70 million RMB, with plant area of more than 20,000 square meters and more than 100 employees. It is a well-known enterprise specializing in laser intelligent equipment and related solutions. Chylaser Group includes Zhejiang HUYUN Optoelectronic Equipment Co., Ltd., (Headquarter)Jiangsu MIKE Laser Equipment Co., Ltd. Jiangsu HUYUN Laser Equipment Co., Ltd.
Welcome to Visit Our Factory
If you have plan to visit our cnc fiber laser cutting machine factory, just contact us is ok, we will arrange everything well
according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us, 24x7, we always here!
>>> Click here, Your 24x7 helper ^ ^
HuYun LXSHOW CNC Fiber Laser, One Stop Service!
If you have plan to visit our cnc fiber laser cutting machine factory, just contact us is ok, we will arrange everything well
according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us, 24x7, we always here!
>>> Click here, Your 24x7 helper ^ ^
HuYun LXSHOW CNC Fiber Laser, One Stop Service!
FAQ
Q:How can I get the sample to check you quality ? A:If you want to marking sample to check the quality, we can help you do this. first you need to provide the logo or design to us, free mark samples can be provided. Q: If we are interested in your machine, how to choose proper power? Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut? Q:Does the machine can be customized according to my requirements ? A:Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied. Q:How to operate the machine ? A:We will deliver English manual and video with the machine to you. If you still need our help, please contact us. Q: How about warranty? A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period. Q: Do you have after sales support? A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.
