Main spare parts list:
1. Laser source - Raycus (MAX, JPT, IPG for option)
2. Laser cutting head - Raytools (Precitec & automatic focus for option)
3. Chiller - Hanli
4. Servo drive - LEAD-MOTION (Germany)
5. Reducer - NIDEC-SHIMPO (Japan)
6. Rack - LEAN (Germany)
7. Guide - HIWIN (Taiwan)
8. System - Cypcut
 |

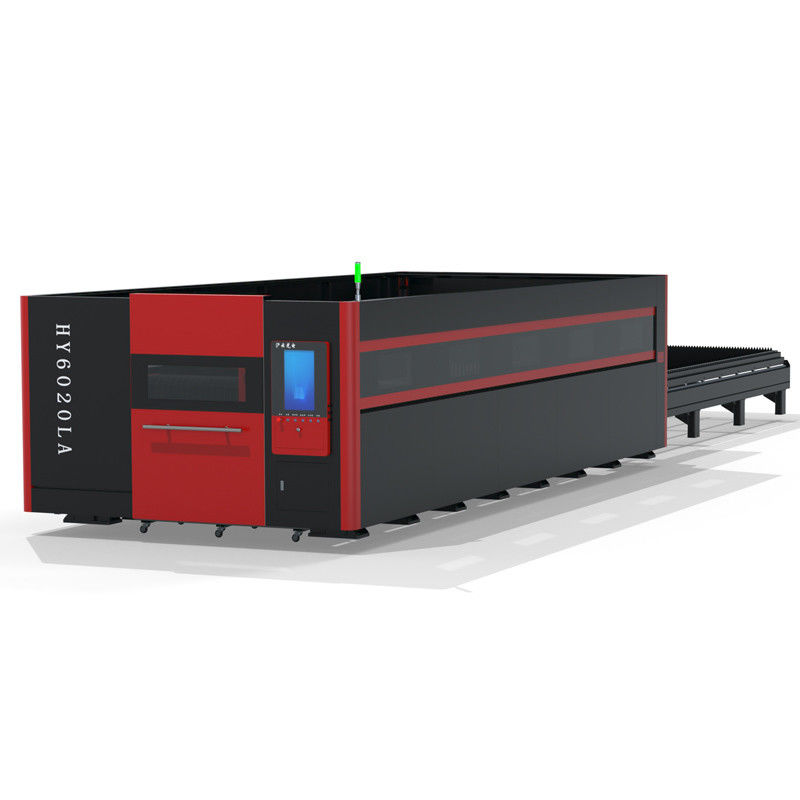

Speed Dajco Microjet Textile Cabinet 8kW Home 4040 Cabinet Laser Cutting Machine for Cutting Area 3000*1500mm
Product Details:
| Place of Origin: | China |
| Brand Name: | Chylaser |
| Certification: | ce, ISO, Sgs |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $24,000.00/sets 1-4 sets |
| Packaging Details: | Standard Export Packing |
| Payment Terms: | T/T, L/C, Cash |
| Supply Ability: | 30 Set/Sets per Month |
|
Detail Information |
|||
| Application: | LASER CUTTING | Applicable Material: | Metal |
|---|---|---|---|
| Condition: | New | Laser Type: | Fiber Laser |
| Cutting Area: | 3000*1500mm | Cutting Speed: | 1000-26000mm/min |
| Graphic Format Supported: | AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP | Cutting Thickness: | 1-30mm |
| CNC Or Not: | Yes | Cooling Mode: | WATER COOLING |
| Control Software: | CypCut | Laser Source Brand: | IPG/MAX |
| Laser Head Brand: | Chylaser | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 7000 KG | Key Selling Points: | High-accuracy |
| Warranty: | 3 Years | Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 3 Years | Core Components: | Laser |
| After-sales Service Provided: | Online Support, Field Installation, Commissioning And Training, Video Technical Support | After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service |
| Local Service Location: | Canada, United States, France, Germany, Viet Nam, Thailand, Malaysia | Showroom Location: | None |
| Marketing Type: | New Product 2021 | Port: | Lianyungang |
Product Description
FIBER LASER CUTTING MACHINE
LASER WELDING MACHINE
CO2 CUTTING ENGRAVING MACHINE
LASER CLEANING MACHINE
LASER MARKING MACHINE
PIPE LASER CUTTING MACHINE
FEATURES AT A GLANCE

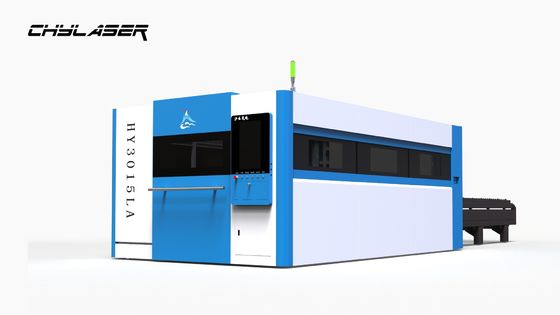

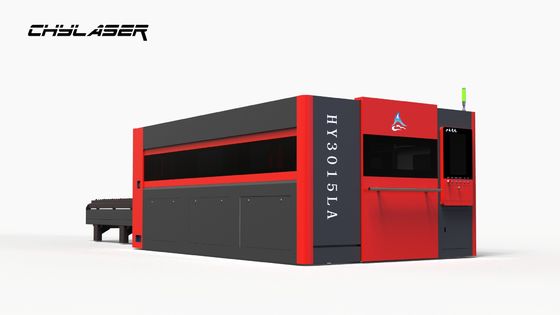

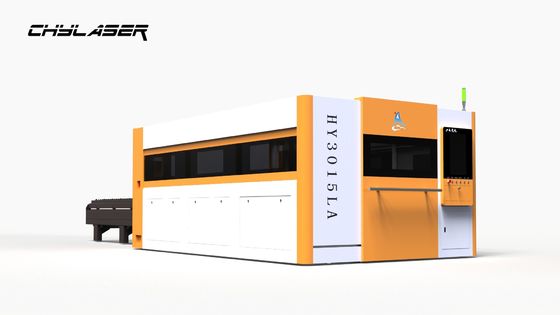

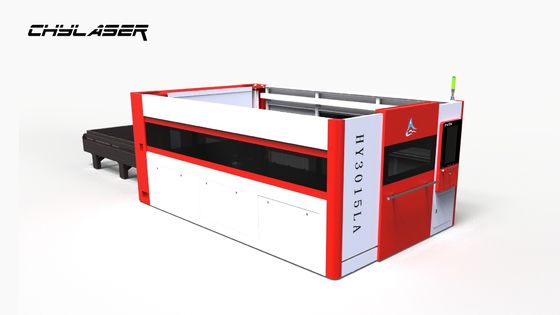

Fiber CNC Laser Cutting Machine
PRODUCT SPECIFICATIONS
Components | Specification | Quantity | Supplier | |
#1 | Laser generator | 1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W 20000W | 1 pcs | Raycus, IPG, MAX |
#2 | Laser cutting head | manual focusing | 1 pcs | Raytools |
#3 | CNC system | special cutting system CYPCUT, height adjustment system BCS100, Industrial Personal Computer (IPC) | 1 set | Cypcut |
#4 | CNC system | machine tool body, beam, metal sheet, exchange platform | 1 set | Chylaser |
#5 | Transmission system | reducer & gear rack | 3 set | Motoreducer & Lean |
guide rail | 4set | Hiwin | ||
#6 | Servo system | driver & motor | 4 set | Fuji |
#7 | Cooling system | 1000W 1500W 2000W 3000W 4000W 6000W 8000W 12000W 20000W | 1 pcs | Hanli |
#8 | Lubrication device | electric lubricating pump | 1 set | Duanrun |
#9 | proportional valve, solenoid valve, check valveGas circuit components | proportional valve, solenoid valve, check valve | 1 set | SMC, AirTAC |
#10 | Electric circuit components | contactor, circuit breaker, electric relay | 1 set | CHNT, Schneider |
Dimension&weight | Weight | >7000kg |
Maximun load | 1500kg | |
Dimension | 11000✖2800✖2200mm | |
Covered area | 31㎡ | |
Power parameter | Power type | 3+1 phases |
Power voltage and frequency | 380V 50Hz | |
Total installed power consumption | 15KW | |
Protection grade of power supply | IP40 | |
Processing format | Length and width | 3000mm✖1500mm |
X-axis travel | 1520mm | |
Y-axis travel | 3020mm | |
Z-axis travel | 220mm | |
Precision | X/Y-axis | ±0.05mm/m |
X/Y-axis repetitive position | ±0.03mm/m | |
Maximum acceleration | 0.8G | |
Cutting parameter | Cutting thickness | Imm - 60mm |
transmission | Servo gear rack |
