Wavelength 1080nm Spot Fanuci Thermocouple Anhui Sensors Marking Laser Welding Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Chylaser |
| Certification: | ce, ISO, Sgs, CCC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,800.00/sets 1-9 sets |
| Packaging Details: | Standard Export Wooden Packing |
| Payment Terms: | T/T, L/C, Cash |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Condition: | New | Max. Output Power: | 1000W |
|---|---|---|---|
| Use: | Fiber Laser Welding | Wavelength: | 1080nm |
| Warranty: | 2 Years, 2 Years | Laser Source Brand: | MAX |
| Laser Head Brand: | Precitec | Servo Motor Brand: | Yaskawa |
| Guiderail Brand: | HIWIN | Control System Brand: | Cypcut |
| Weight (KG): | 200 KG | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction Works , Energy & Mining, Advertising Company, Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Hot Product 2021 |
| Warranty Of Core Components: | 2 Years | Core Components: | Laser Generator, Laser Welding Torch, Chilling Machine |
| Product Name: | Laser Welding Machine | Laser Power: | 1000w |
| Application Material: | Steel Aluminum Copper | Working Mode: | Hand Held |
| Welding Depth: | 0.1-2mm | Color: | Black Red |
| Laser Frequency: | 50Hz-5KHz | Air Humidity: | 10-90% |
| Cooling Method: | Water Cooling | After-sales Service Provided: | Online Support, Free Spare Parts, Field Maintenance And Repair Service, Video Technical Support |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts | Local Service Location: | United States |
| Showroom Location: | United States | Port: | Lianyungang, Shanghai |
Product Description

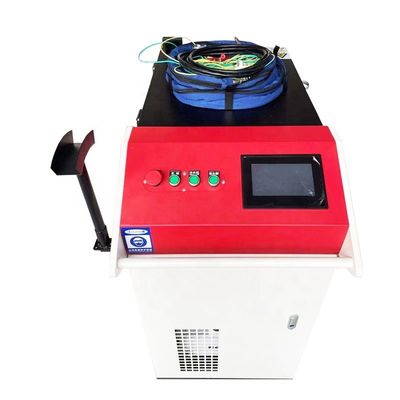

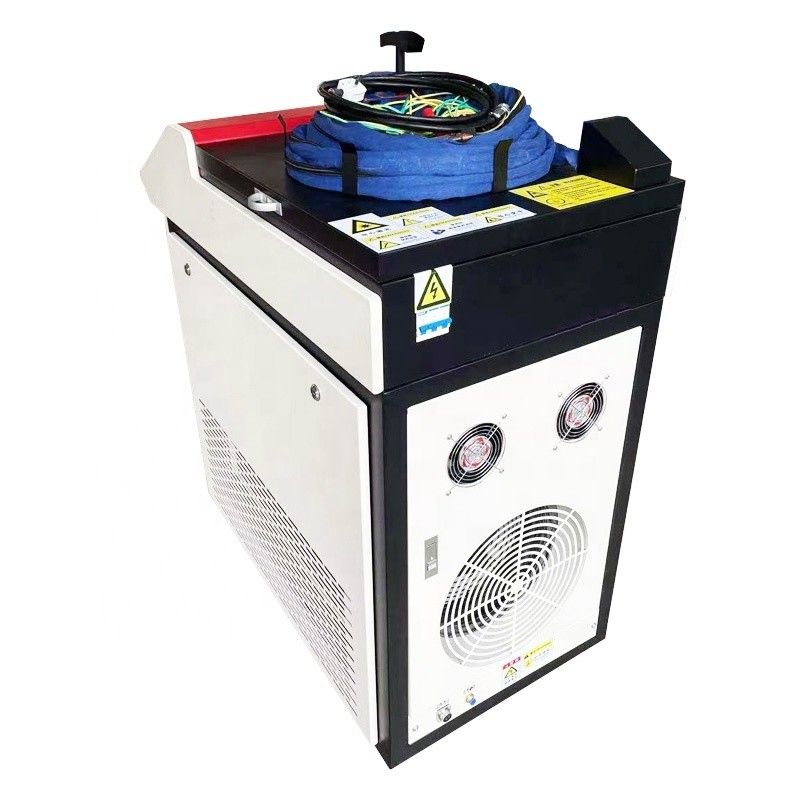

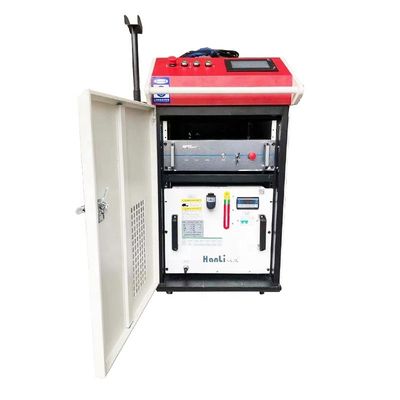

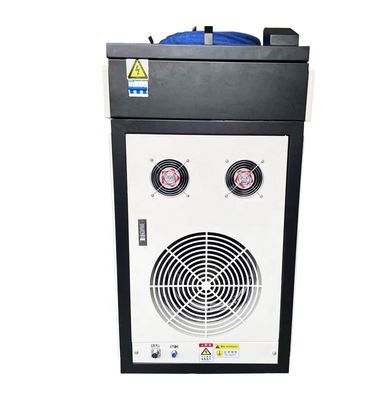

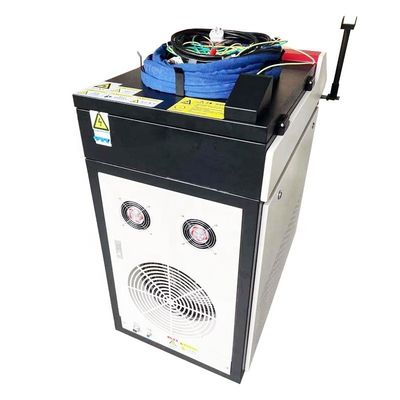

Handheld Laser Welding Machine/Laser Welder 1000W/1500W/2000W
Specification
● Simple operation - the hand-held laser welding machines are easy to use, and the operators can complete high-quality and beautiful welding without long-term training, which can solve the problem of recruiting welders. ● High welding efficiency - the welding speed is faster than arc welding, which can save 2 welding workers. ● No consumables for welding - welding can be completed without wire filling. ● Good welding effect - small welding influence area, good welding quality and small workpiece deformation. ● High energy efficiency conversion - the laser has high photoelectric conversion efficiency and lower energy consumption. ● Easy to use and flexible - portable welding shape, ergonomic design method, comfortable grip, free and flexible, can reach a wide range. ● Good safety performance - with multiple safety alarms, automatic light locking after moving the workpiece, high safety. ● No grinding of weld joint - continuous welding mode, smooth welding without fish scale, beautiful welding without scar, less subsequent grinding process. ● Wobble head - large spot, suitable for welding a variety of products. ● Welding function package - provide welding function package, welding advantage is obvious, especially the difficult copper welding.
Model | HY-SCHJ1000/1500/2000/3000 |
optical fiber interface | QBH |
Power range | 1000w-3000w |
Laser wavelength | 1064nm |
Spot adjustment | 0-4mm |
Power regulation range | 10%-100% |
Control selection | Point-line-circle |
Positioning mode | Automatic welding device for red light and outer corner |
Cooling mode | Built in water cooler |
Auxiliary air pressure | <1.0Mpa |
Power requirements | AC 220V+15%,50HZ/60HZ |
Host size | L1040*W600*H1200mm |
